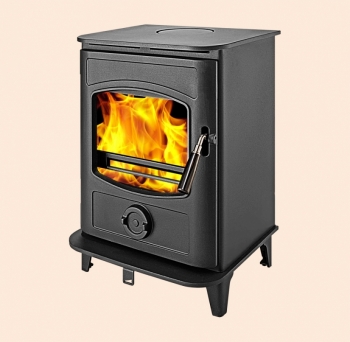

Graphite Five 4.9kW

The Graphite Five ticks all of the boxes including the one for best value. As a testament to its high standards it is both Hetas and Defra Approved and has an outstanding efficiency of 84.3%, which is also SEAI verified. Plus, it has two other brilliant features which you won't find on your average stove. The first is the pre-heated tertiary air supply which enters the fire chamber through jets in the unique heavy duty cast iron back-plate. Unlike other stoves this ensures that the fire chamber stays hot for longer so that it is not only exceptionally clean burning but also ensures that the glass remains crystal clear – unusually, even to the very end of the burn cycle.

Secondly, in addition to the traditionally radiated 5kW heat output the Graphite Five also helps move this abundant heat quickly around your room with its unique 'Heat Conveyor' system – a first for a compact stove. All of which can be managed exactly with a much wider range of precise air control.

Hearths and Accessories


Graphite Five 4.9kW

Incl. VAT

Graphite Five 4.9kW Matt BlackP.O.R.
€1,775
Graphite Five external air box
€160
Prices exclude delivery & fitting and are for the Irish market only. Overseas customers should request a quotation
H&F offer a full installation service; however the price may vary depending on any additonal preparartion work required such as for the chimney or plumbing. Please ask our sales team for a free, no obligation visit from one of our Reps for a full quotation
  • Suitable for 12mm hearth (subject to Building Regulations)
  • Takes logs up to 250mm (10")
  • No air brick required in pre-2008 homes (subject to Building Regs)
  • Clean-burn pre-heated tertiary air system to maximise efficiency
  • Pre-heated Airwash System to help keep the glass cleaner for longer
  • All feet are adjustable for uneven hearths
  • User friendly clamp-tight stay-cool door handle
  • Top or rear 125mm (5") flue options
  • Robot-welded premium thick steel bodywork (eg 10mm thick lid)
  • Longer lasting finest quality cast iron door and tertiary air back-plate
Output: 5kW
Efficiency: 84.3% (Net)
Flue Size: 125mm/5"

Graphite Five Stove Dimensions

Graphite Five Instruction Manual

Flexi flue lining kits for solid fuel cookers & stoves. Stainless steel 316 or 904 grade available. 5" or 6", two storey or single storey kits. Full kit includes 6M or 9M flexi, appliance adaptor, top clamp plate and standard rain cowl. Optional vemiculite 100L bags.
Flexi flue lining kits for oil cookers. Stainless steel 316 or 904 grade available. 5" or 6", two storey or single storey kits. Full kit includes 6M or 9M flexi, appliance adaptor, top clamp plate and standard rain cowl. Optional vemiculite 100L bags.
Twin Wall factory chimney systems for solid fuel and oil appliances. Fully modular systems, stainless steel, clamp together systems.
Single wall flue systems in 4", 5", 6" and 7". Gloss black enamel or matt black finish. Straights, bends & cleaning access.
Cowls for clay chimney pots & twin wall systems. H cowls, antidraft cowls available in a range of sizes.
Installation materials. Premium grade fire cement 25Kg, 10Kg & 2Kg. Heatproof silicone sealant & glue. Stove paint, matt black.
Please call 062-61511 and ask the H&F shop for a quotation on any of the above.
